Solar motor with levitating rotor
Online since: 19/05/2010, Number of visits: 401156

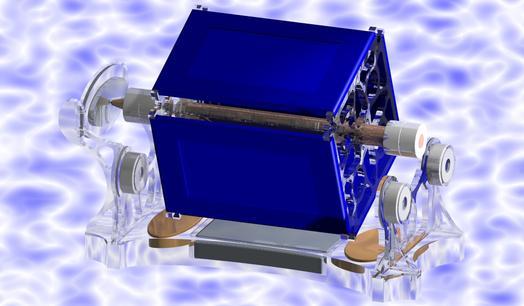

Manufacturing process for Mendocino motor
The first piece of the rotor is done. Later, the coil wire will be wound into the notches in the corners.
The solar panel is mono-crystalline and has a maximum current of approx. 200 mA at a voltage of approx. 0,5 V.
This translates into a maximum power of approx. 0,1 Watt.
The match shows the small dimensions of the motor.

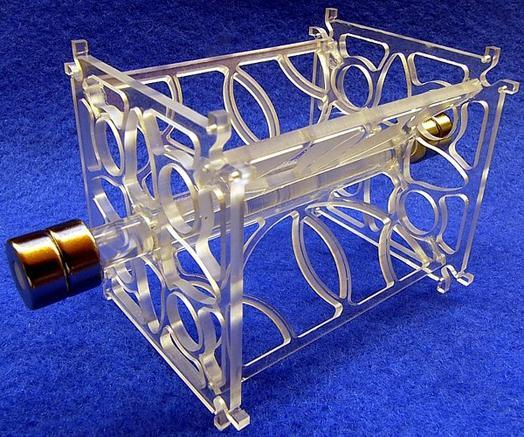

Here you can see the completely glued rotor. The axle is made of Plexiglas, because I couldn't find round polycarbonate rods.
I glued a steel sphere (1,2 mm diameter) into the peak (right).
It is hardened and provides a long life expectancy with little wear and tear.
I put two R-10-04-05-N ring magnets on the front and the back of the rotor respectively.
I used a Q-40-20-05-N block magnet for a stator, which I embedded and glued into a Plexiglas plate.
On this picture you can see the dark wood inlaid work (marquetry) pretty well, which I used for aesthetic reasons.
I embedded a small wooden plate and a tiger's-eye on the side. This semi-precious stone constitutes the counter bearing to the steel sphere of the rotor. That's basically an inlaid work in the inlaid work.
The stone has a Mohs hardness of 6-7. So, it should last for a while when the rotor peak rests on it.

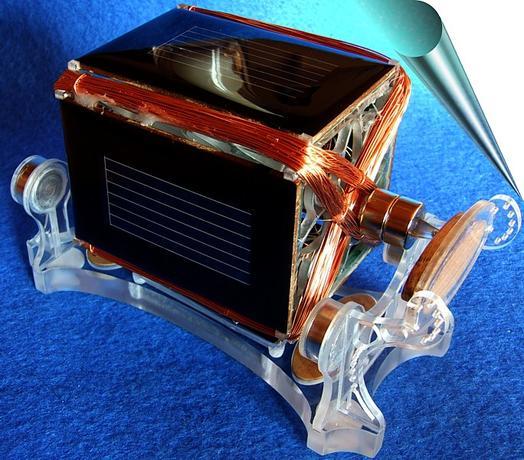

Here you can see the complete motor with all windings. Only now, when everything was done, did I glue the magnets to the mounting and the rotor.
The rotor actually levitates in the magnetic field! I am very happy with the result.
Mini Mendocino motorAddition from Alain Gleyzes (2015): My goal was to build the world's smallest 3D-printed Mendocino motor. Instead of using one large block magnet, I embedded four disc magnets and needed only two ring magnets due to the light weight.
You can find a detailed documentation of the assembly at Thingiverse.com.
